Pipe Spool Pre-fabrication Station-Pipe Cutting & Beveling Machine

Short Description:


  • Min.Order Quantity: 1 Piece
  • Port: Shanghai
  • Brand Name: YouBest
  • Place of Origin: Jiangsu,China
  • Product Detail

    Send Inquiry

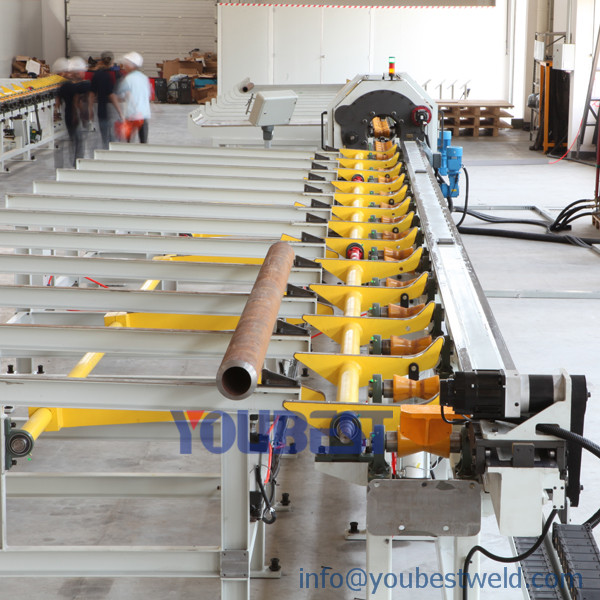

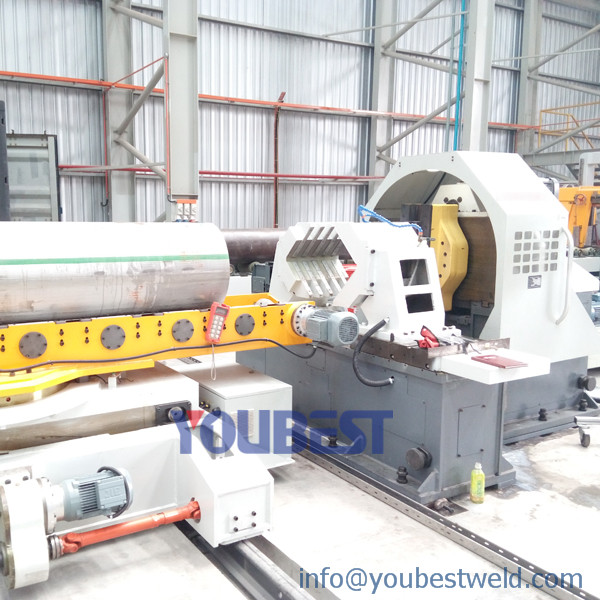

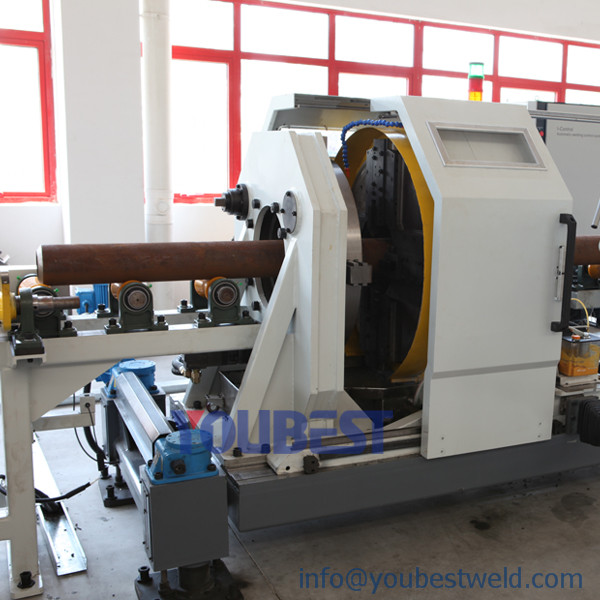

    The integrated cutting & beveling Machines have achieved the international standard by utilizing lots of advanced techniques. The pipes go through the machine body, clamped automatically. The tool plate starts to rotate and complete cutting and two bevels at the same time.

    The pipe spool production line starts from the cutting and beveling process, and cut-off pipes will be conveyed to specified buffer location according to manual input command. Operator will select the pipe and corresponding fittings.

    Pipe cutting and beveling machine

    -          OD: Φ60-355mm (2-24″) , wall thickness: 4-25mm

    -          Suitable for pipe length: 3000~12000mm, minimum 550mm for single end beveling manual operation;

    -          Bevel type:V,compounding V (optional) and J-bevel(optional);

    -          Block device: pneumatic cylinder with electrical control;
