Large Pipe & Thick Wall Pipeline Prefabrciation Production Line

Short Description:


  • Min.Order Quantity: 1 Piece
  • Port: Shanghai
  • Brand Name: YouBest
  • Place of Origin: Jiangsu,China
  • Product Detail

    Send Inquiry

    Piping work is divided into two stages: Prefabrication of Pipe Spools and site installation. Our machines are for pre-fabrication of pipe spools.

    Prefabrication of pipe spools is a proven means for reducing field installation costs while providing the highest of quality in the products fabricated.

    Pipe spools are often flanged to facilitate the connection to other spools. The fabrication of these spools is normally performed by specialist fabrication companies which are equipped with the required infrastructure.

    Fixed Pipe Spool Fabrication Procedures include:

    Pipe Cutting and Beveling Machine

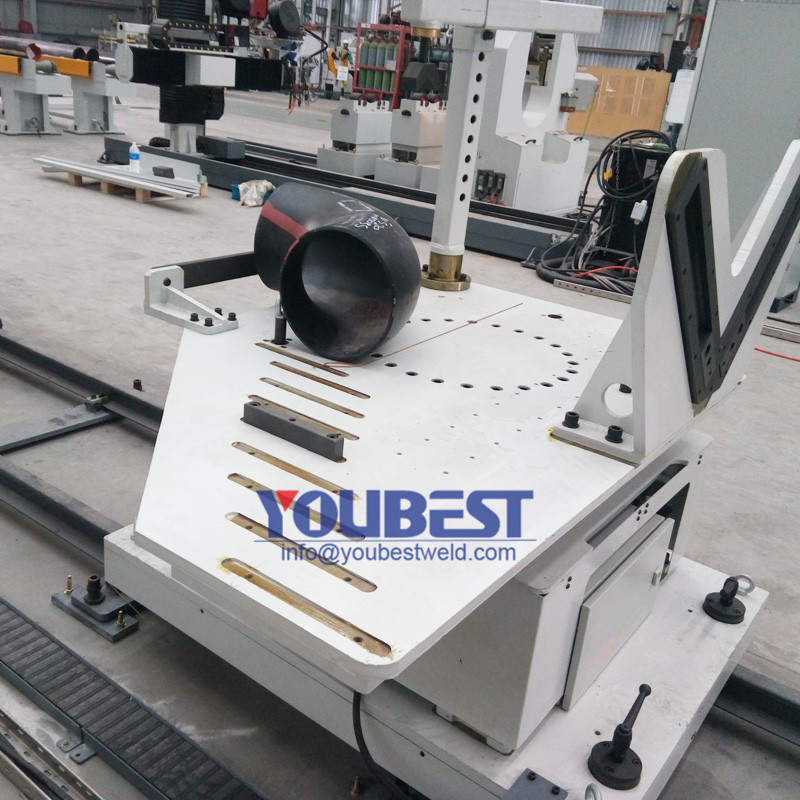

    Piping Prefabrication Fast Speed Fitting-up Machine

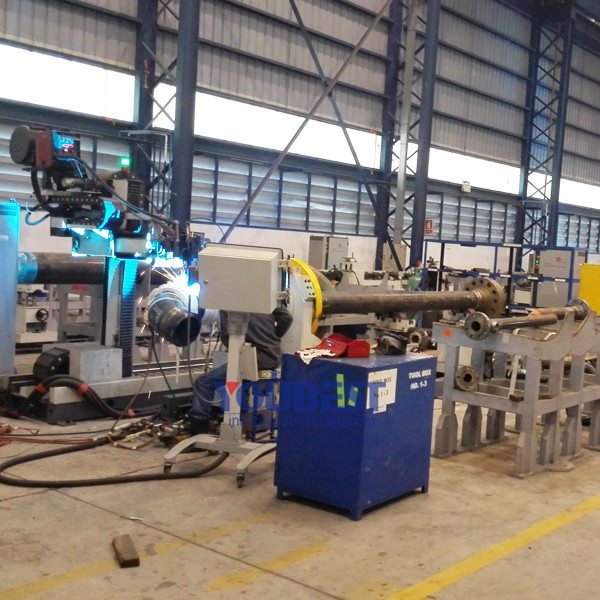

    Piping Prefabrication Automatic Welding Machine or Piping Automatic Welding Machine

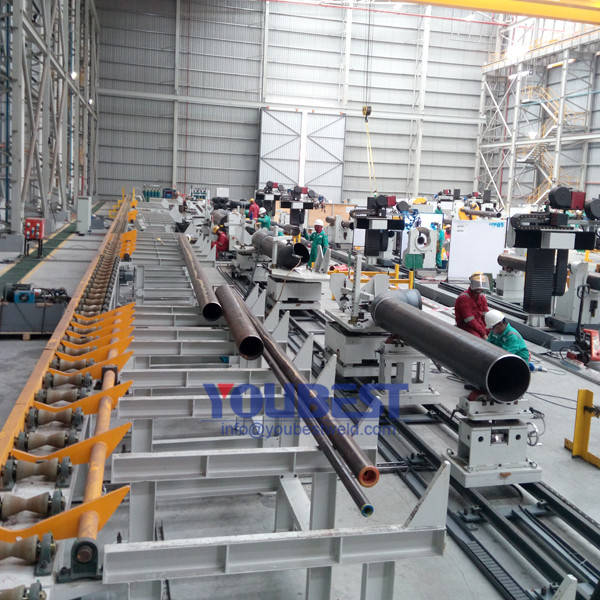

    Automatic Conveying System
    Steel Structure Pipe Racks

    Production Efficiency: Excellent(Hoisting with overhead traveling crane,Beveling with High Speed Cutting and Beveling Machine and Welding with automatic welding machine)

    Application Range: Often Carrying on Piping Projects or Piping prefabrication

    Technical Parameters:

    Production Capacity: 20-150 Thousands Diameter-Inch/ Month (or depend on workshop area and equipment config or as per request)
    Pipe Diameter: DN50-600(60-610mm)or as per request
    Pipe Thickness: 3-80MM
    Conveying Speed: 2-20M/Min
    Beveling Speed: 5Min / Two Bevels(DN200 SCH40)
    Automatic Welding Rate: 60%
    Prefabrication Ratio: 50%~80%
