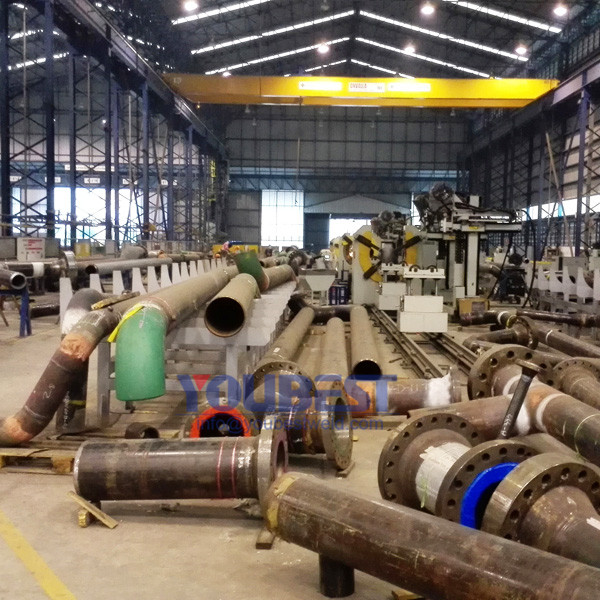

Steel Pipe Spool Pipeline Fabrciation Production Line (Fixed in the factory)
Piping work is divided into two stages: Pre-Fabrication of Pipe Spools and site installation. Our machines are for pre-fabrication of pipe spools.
Pre-Fabrication of pipe spools is a proven means for reducing field installation costs while providing the highest of quality in the products fabricated.
Pipe spools are often flanged to facilitate the connection to other spools. The fabrication of these spools is normally performed by specialist fabrication companies which are equipped with the required infrastructure.
Fixed Pipe Spool Fabrication Procedures include:
Pipe Cutting and Beveling Machine

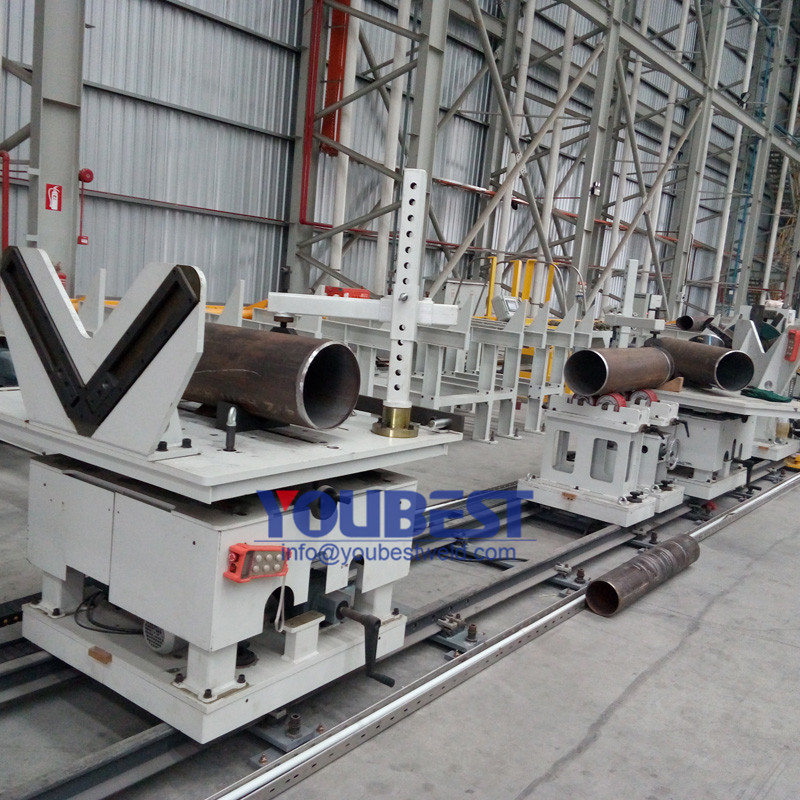

Piping Prefabrication Fast Speed Fitting-up Machine
Piping Prefabrication Automatic Welding Machine or Piping Automatic Welding Machine

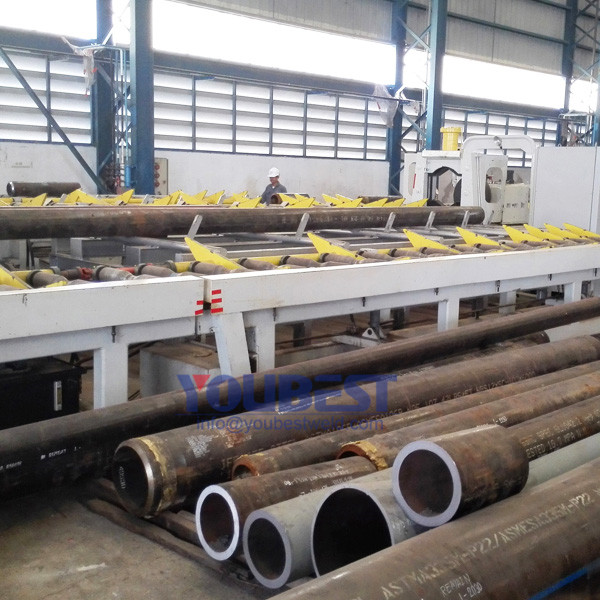

Automatic Conveying System
Steel Structure Pipe Racks
Production Efficiency: Excellent(Hoisting with overhead traveling crane,Beveling with High Speed Cutting and Beveling Machine and Welding with automatic welding machine)
Application Range: Often Carrying on Piping Projects or Piping prefabrication
Production Capacity: 20-150 Thousands Diameter-Inch/ Month (or depend on workshop area and equipment config or as per request)
Pipe Diameter: DN50-600(60-610mm)or as per request
Pipe Thickness: 3-80MM
Conveying Speed: 2-20M/Min
Beveling Speed: 5Min / Two Bevels(DN200 SCH40)
Automatic Welding Rate: 60%
Prefabrication Ratio: 50%~80%
