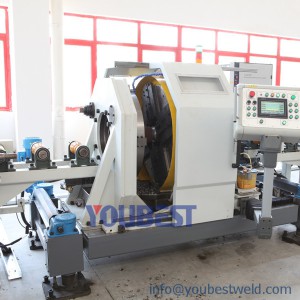

Automatic CNC Pipe End Beveling Machine OD Φ2″-14″

Short Description:


  • Min.Order Quantity: 1 Piece
  • Port: Shanghai
  • Brand Name: YouBest
  • Place of Origin: Jiangsu,China
  • Product Detail

    Send Inquiry

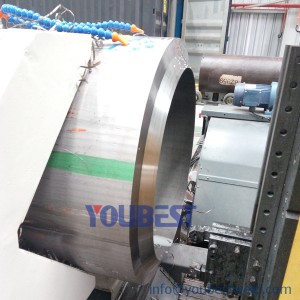

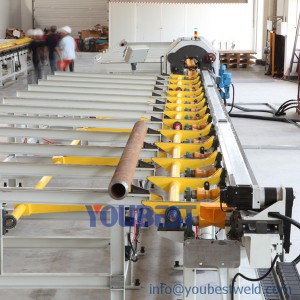

    Youbest CNC Pipe End Beveling Machine (for OD 2″-14″) is applicable to bevel and face the pipe end with Elevating Conveyors for Centering, suitable for various materials such as carbon steel, alloy steel, stainless steel, etc. It can process single V, double V, J, U type bevels and realizes two pipe ends beveled by elevating & turning-round carriage, which can turn in 180 degree in 30 seconds to bevel and face another pipe end.

    1) Work piece diameter range:Φ2″~Φ14″ (50.8~355.6mm);

    2) Wall thickness: 4mm~60 mm;

    3) Pipe length: 1-6meters

    4) Beveling type: single V, 0-37.5°, compounding V

    5) Main power: 7.5KW;

    6) Tool plate rotation:67-123 rpm (3 shift: 67,123,92)

    7) Axial stroke: main shaft: 70 mm Slide stroke: 200 mm

    8) Horizontal stroke: slide base ±50 mm

    9)Tool feeding stroke: 200 mm

    10) Cutting width≤8mm (automatic feed in/out function)
